Acer Aspire 7 Battery Replacement

Title: Acer S7-391-6413 Laptop Battery Replacement Guide

Author: Simon

Introduction: Hi, I’m Simon. In this tutorial, I’ll demonstrate how to replace the battery in an Acer S7-391-6413 laptop. This guide is perfect for anyone with the same model looking to replace their battery.

Tools Required:

1. T5 Screwdriver (Torx 5)
2. Phillips Screwdriver
3. Metal Prying Tool

Battery Replacement Steps:

1. Removing the Screws:
   • Begin by using the T5 screwdriver to remove all the screws from the laptop’s back panel. Most screws are of the same size, but be aware of one longer screw in the center.
2. Opening the Back Panel:
   • With a metal prying tool, gently work around the edges of the back panel to lift it off. Take your time to avoid damaging the laptop.
3. Removing the Old Battery:
   • Locate the battery, which occupies a significant portion of the space once the back cover is off.
   • Use the Phillips screwdriver to remove one screw holding the battery in place.
   • To disconnect the battery, gently slide its connector out of the socket.
4. Installing the New Battery:

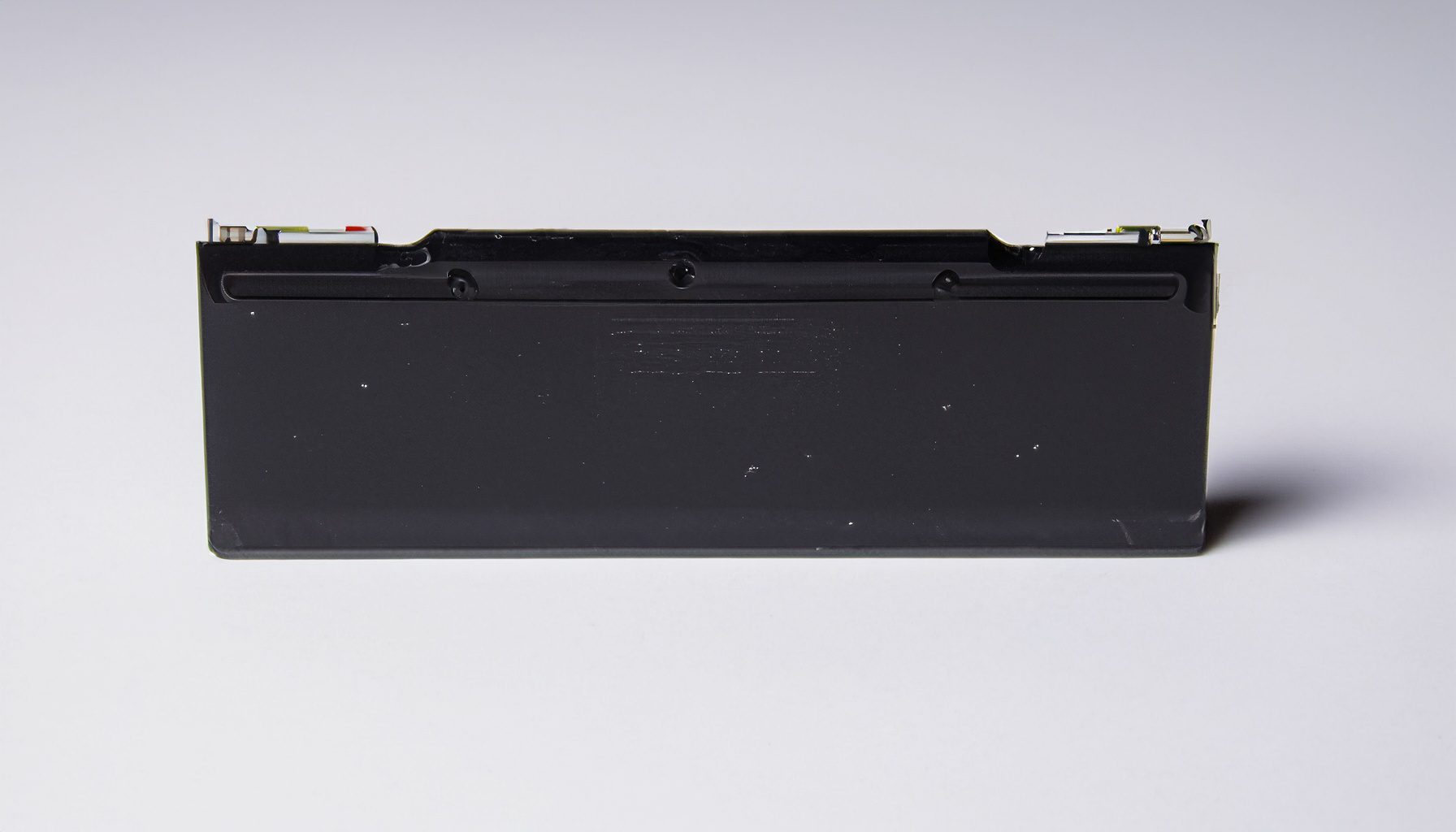

   • Take your new battery (model number AP12F3J) and align it in the battery compartment.
   • Reconnect the battery by sliding its connector into the socket.
   • Secure the battery with the Phillips screw previously removed.
5. Reassembling the Laptop:
   • Place the back cover on the laptop, ensuring it fits snugly.
   • Use the T5 screwdriver to replace all screws, including the longer center screw.
   • Your laptop is now equipped with a new battery.

Conclusion: Replacing the battery in your Acer S7-391-6413 is a straightforward process that can significantly improve your laptop’s battery life and performance.

Additional Tips:

• Keep track of the screws and their corresponding holes, especially the longer screw.
• Handle the battery and connectors with care to avoid damage.
• Ensure all connections are secure before closing up the laptop.
