Title: MacBook Pro A1708 Screen Replacement Tutorial

Author: Simon

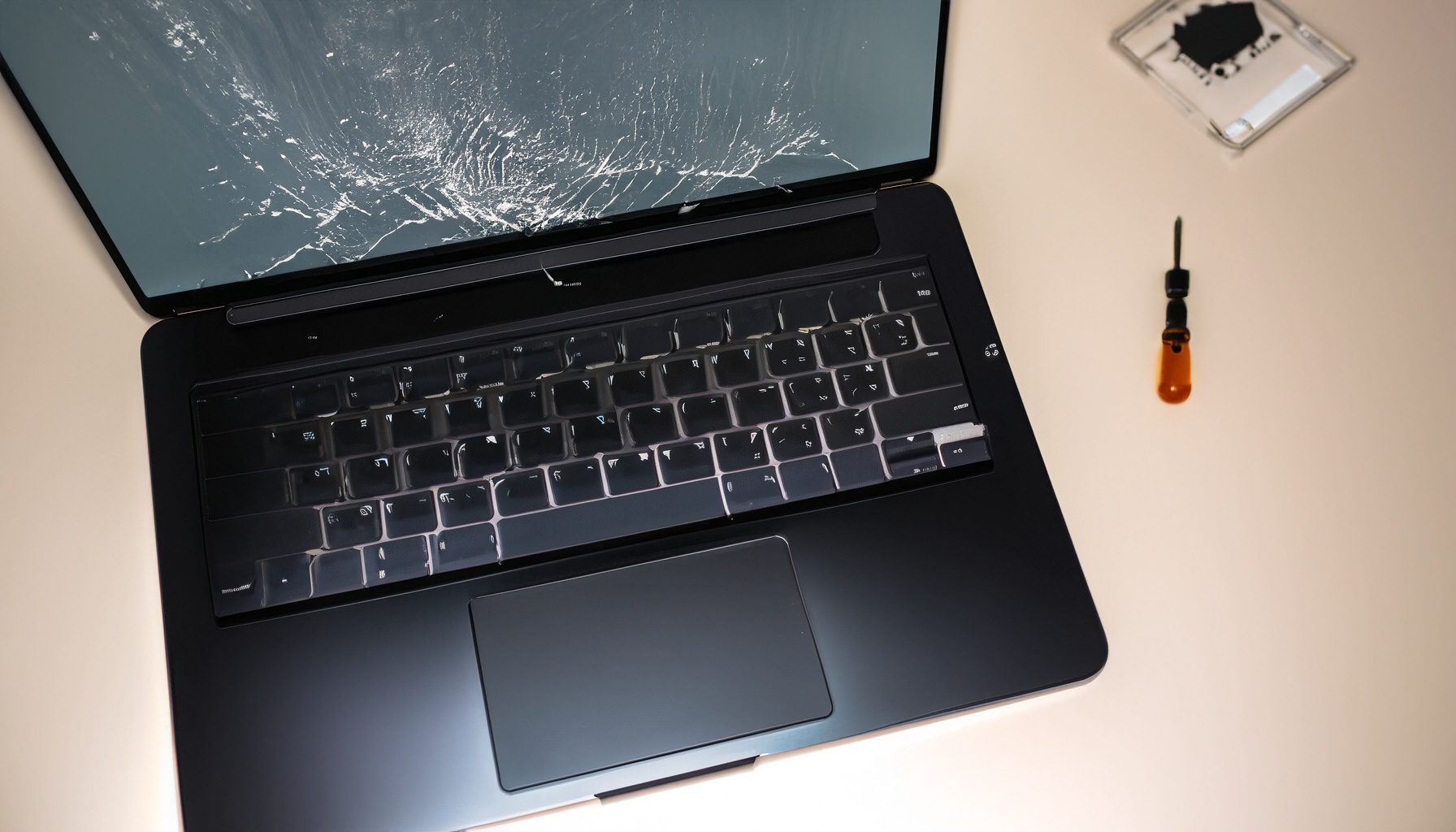

Introduction: Hello, Simon here. In this video, I’ll guide you through replacing the screen of a MacBook Pro, model A1708. This is a 13-inch model in space gray. If your screen is cracked, pixelated, or experiencing color distortion, this tutorial is for you. Before we begin, make sure you have the right tools and replacement screen, which I’ve linked in the description below, available on Amazon or eBay.

Steps for Screen Replacement:

1. Tools Needed:
   • Pentalobe P5 screwdriver
   • Torx T4 screwdriver
   • Torx T5 screwdriver
   • Pentalobe P2 (0.8) screwdriver
   • Metal prying tool
   • Plastic prying tool
2. Removing the Back Cover:
   • Use the Pentalobe P5 to remove all screws from the back cover. Top screws are longer, so keep track of each screw’s location.
   • Pry open the back cover using a metal prying tool, then slide it toward yourself to remove.
3. Disconnecting the Battery:
   • Peel off the plastic cover over the battery connector.
   • Use a plastic prying tool to open the connector at a 90-degree angle and slide the cable out.
   • Remove the nearby screw with a T4 screwdriver to disconnect the battery.
4. Removing Internal Components:
   • Continue using the T4 screwdriver to remove screws from various components, including the Wi-Fi antenna and LCD board.
   • Disconnect the Wi-Fi cables and the 40-pin LCD cable.
5. Removing the Wi-Fi Antenna:
   • Switch to a Pentalobe P2 (0.8) screwdriver to remove tiny screws holding the Wi-Fi antenna.
   • Remove the antenna by lifting it up.
6. Removing the Screen:
   • Use a T3 screwdriver to remove screws and brackets from the screen hinges.
   • Use a T8 screwdriver to remove hinge screws.
   • Open the laptop to a 90-degree angle and slide out the hinges to free the screen.
7. Installing the New Screen:
   • Prepare the new screen by ensuring the hinges are fully open.
   • Slide the hinges into the laptop’s body, ensuring all cables are above the laptop and not pinched.
   • Secure the hinges with the T8 screws.
8. Reassembling the Laptop:
   • Reattach the Wi-Fi antenna and secure it with screws.
   • Reconnect all cables, ensuring proper alignment and connection.
   • Replace all screws and brackets in reverse order of removal.
9. Finishing Up:
   • Place the back cover on the laptop, slide it into position, and secure it with screws.
   • Connect the charger to the laptop before turning it on, as the laptop may not power on immediately after battery disconnection.

Conclusion: Your MacBook Pro should now have a new screen. Test the laptop to ensure everything is functioning correctly. This DIY approach can be more cost-effective than professional repair services.

Closing Remarks: If you found this tutorial helpful, please like and share the video, and consider subscribing for more helpful guides. Feel free to leave any questions in the comments below. Thank you for watching, and good luck with your MacBook Pro repair!

(Note: It’s crucial to handle all components with care and ensure the laptop is powered off and unplugged before attempting repairs. Keep track of all screws and components during disassembly.)
