HP Pavilion 15 Battery Replacement

HP Pavilion 15-Z AW0 Battery Replacement Guide

Introduction:

• Model: HP Pavilion 15-Z AW0
• Issue: Swollen internal battery causing bulging and affecting the keyboard and backplate
• Solution: Replace the battery

Tools Needed:

• Phillips screwdriver
• Safety goggles (recommended for safety with swollen batteries)

Steps for Replacement:

Preparing the Laptop:

1. Shut Down: Ensure the laptop is turned off.
2. Positioning: Place the laptop with its bottom facing up.

Removing Screws and Backplate:

1. Unscrew: Use a Phillips screwdriver to remove all visible screws from the backplate.
2. Check for Hidden Screws: Under rubber feet or stickers, there might be additional screws. Check and remove if present.
3. Remove Backplate: Carefully lift and set aside the backplate.

Removing the Battery:

1. Battery Location: Identify the swollen battery.
2. Safety Precautions: Be cautious with the swollen battery to prevent any risk of fire or explosion.

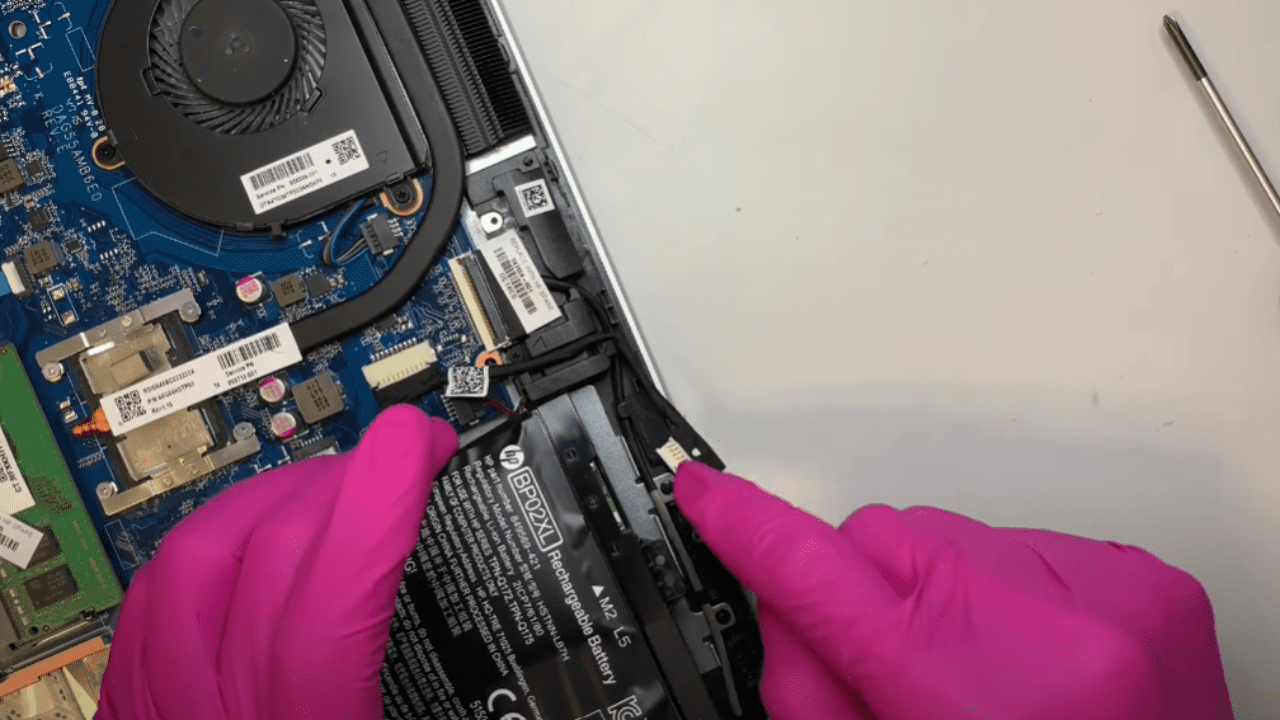

3. Disconnect Battery: Gently disconnect the battery connector.
4. Unscrew Battery: Remove the screws holding the battery (usually three).
5. Remove Battery: Carefully lift and remove the swollen battery.

Installing the New Battery:

1. Position New Battery: Place the new battery in the slot where the old one was removed.
2. Screw in Battery: Secure the battery with screws.
3. Reconnect Battery Connector: Carefully reconnect the battery connector.

Reassembling the Laptop:

1. Replace Backplate: Put the backplate back and screw it in place.
2. Test the Laptop: Power on the laptop to ensure the new battery is functioning correctly.

Additional Information:

• RAM Upgrade: If interested, add additional DDR4 RAM in the available slot.
• SSD Upgrade: For performance improvement, replace the HDD with an SSD and reinstall Windows 10.
• CPU Fan Replacement: If needed, the CPU fan can be replaced by removing its screws.
• LCD Screen Replacement: The LCD screen can be replaced by disconnecting the 40-pin connector and removing the hinges.

Tips:

• Handle with Care: Be very gentle with swollen batteries and dispose of them properly.
• Cable Management: Ensure no cables are pinched or improperly placed when reassembling.
• Testing: It’s crucial to test the new battery before putting all screws back to ensure everything is working correctly.

Conclusion:

Replacing the battery in an HP Pavilion 15-Z AW0 is a straightforward process but requires careful handling of a swollen battery. With the right tools and precautions, this can be a successful DIY project.
