HP Pavilion 24-k0024 CPU Fan Replacement Guide

Hello, I’m Simon. Today, I’ll guide you through replacing the CPU fan in an HP Pavilion 24-inch all-in-one PC, model 24-k0024. This tutorial will also be helpful for RAM upgrades or hard drive replacements.

Initial Steps

• Laptop Model: HP Pavilion 24-k0024.
• Issue: CPU fan making scraping noises due to a faulty ball bearing.

Removing Front Panel

• Location: Remove the speaker cover at the bottom front of the PC.
• Technique: Use your fingernail or a prying tool to gently remove the cover. It’s held by clips, not screws.

Accessing Internal Components

• Removing Screws: Unscrew the three screws exposed after removing the front panel.
• Disconnecting Cables: Carefully disconnect three cables – a small one with a clipper, a middle cable, and the LCD cable with a black safety clipper.

Removing the Screen

• Technique: Gently pry open the LCD screen using a prying tool. Start from the sides and work your way around.
• Screen Removal: Lift the screen off to expose the motherboard and the CPU fan.

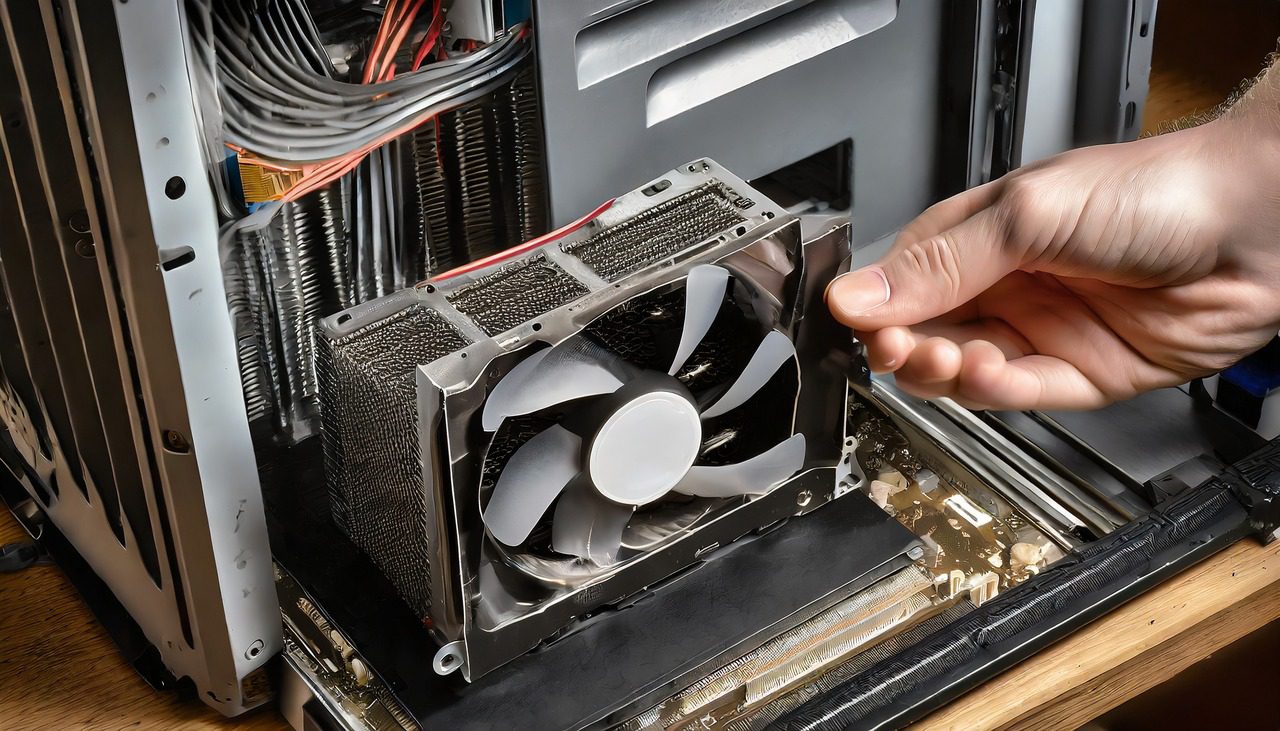

Replacing the CPU Fan

• Removing the Fan: Unscrew three screws holding the CPU fan and gently lift it out.
• Installing New Fan: Place the new fan and secure it with the screws. Ensure the connector is firmly attached.

Quick Internal Tour

• RAM: DDR4 RAM slots for potential upgrades.
• Motherboard: Overview of the motherboard layout.
• CPU Area: Highlighting the CPU location.

Reassembling the PC

• Screen Placement: Carefully align and place the screen back, ensuring it snaps into the clips.
• Reconnecting Cables: Reattach the LCD and other cables securely.
• Final Steps: Screw the three screws back in and reattach the front speaker cover by snapping it into place.

Conclusion

• Final Thoughts: If this tutorial was helpful, please like and subscribe for more. Share your experience or ask questions in the comments.
• Reminder: Always handle internal components with care to avoid damage.

That’s how you can replace the CPU fan in your HP Pavilion 24-inch all-in-one PC. Thanks for watching, and remember to handle your device with care! See you in the next tutorial.
