Lenovo Yoga 6 Screen Replacement

Title: Lenovo Yoga 6 Screen Replacement Guide

Author: Simon

Introduction: Hi there, I’m Simon, and in this tutorial, I’ll guide you through replacing the screen on a Lenovo Yoga 6. This guide is perfect if you have a cracked screen, pixel issues, or any other screen-related problems.

Tools Required:

1. T5 Torx Screwdriver
2. Phillips Screwdriver (PH1)
3. Metal Prying Tool

Replacement Steps:

1. Removing the Back Cover:
   • Begin by using the T5 Torx screwdriver to remove all the screws from the laptop’s back panel.
   • Carefully pry open the back cover using a metal prying tool. Start at the edges and work your way around gently to avoid damaging the laptop.
2. Disconnecting the Battery:
   • For safety, disconnect the battery before proceeding. Gently slide the battery connector out with your fingers.
3. Removing the Screen:
   • Use the Phillips screwdriver to remove the three screws on each hinge.
   • Carefully open the laptop screen at a 90-degree angle and remove it from the hinges.
4. Installing the New Screen:

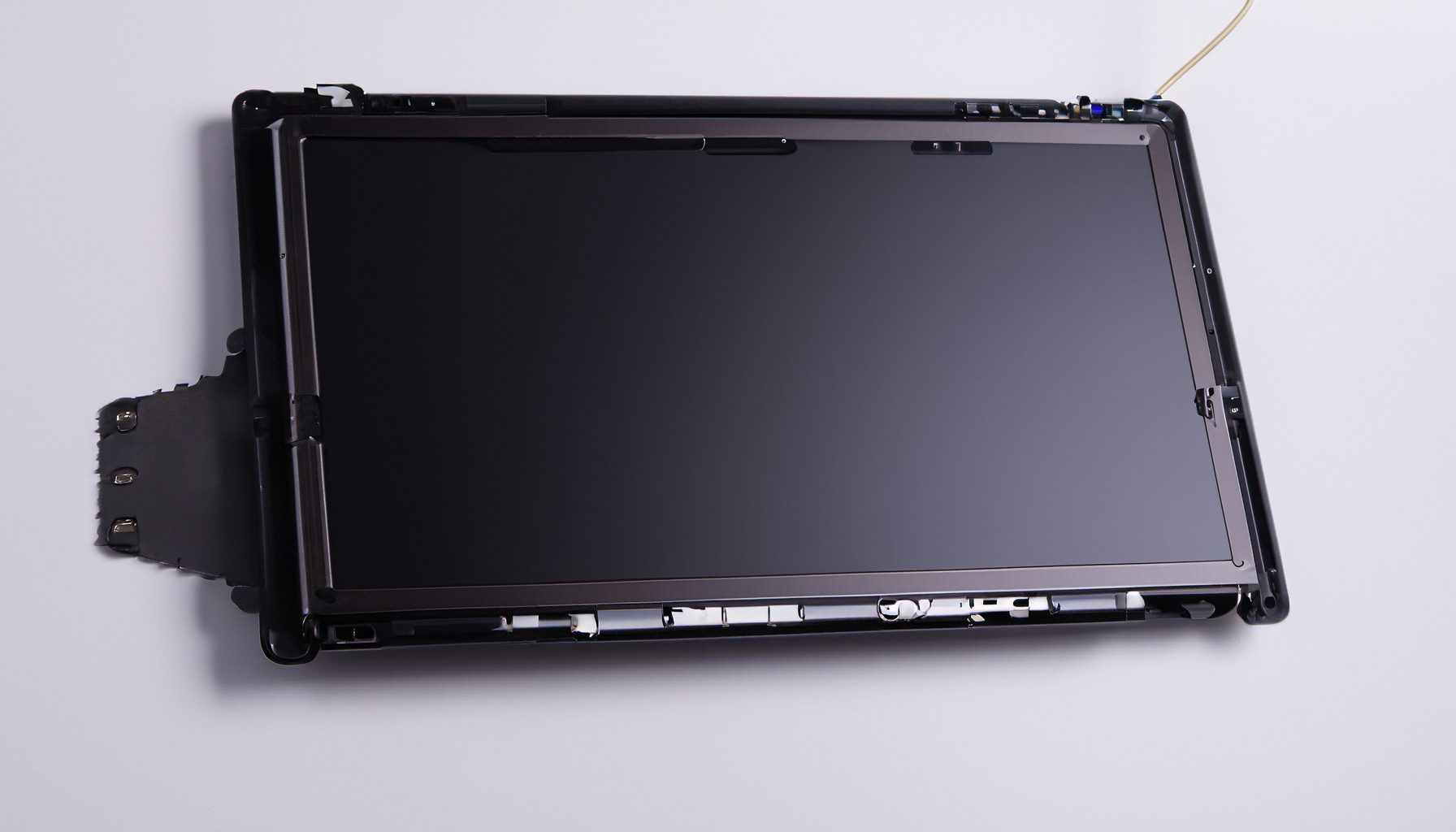

   • Prepare the replacement screen assembly, ensuring it includes the top cover, touchscreen digitizer, LCD, and hinges.
   • Position the new screen assembly, aligning it at a slightly more than 90-degree angle, and ensure the cables are properly placed over the motherboard.
   • Gently slide the hinges back into place and secure them with the screws you removed earlier.
5. Reconnecting Cables:
   • Reconnect the LCD screen connector by aligning it and pressing down gently. Ensure it snaps into place.
   • For the smaller cable in the top left corner, open the clipper, slide the cable in, and then close the clipper.
   • Reconnect the battery by sliding its connector back into place.
6. Reassembling the Laptop:
   • Place the back cover onto the laptop and press down to secure it.
   • Replace all the screws using the T5 Torx screwdriver.

Conclusion: Replacing the screen on your Lenovo Yoga 6 is a straightforward process that can significantly enhance your laptop’s usability and display quality.

Additional Tips:

• Handle the screen and connectors with care to avoid damage.
• Ensure all connections are secure before closing up the laptop.
• Take your time with each step to ensure everything is done correctly.

Final Thoughts: I hope this guide has been helpful for your screen replacement needs. If you have any questions or need further assistance, feel free to leave a comment below.
