Start to Finish Macbook Pro M1 A2338 Screen Replacement

MacBook Pro A2338 Screen Replacement Guide

Introduction

• Problem: Cracked or malfunctioning screen on MacBook Pro A2338.
• Solution: Full assembly screen replacement (includes LCD, webcam, top cover, hinges).

Preparation

1. Purchase Replacement Screen: Links provided in the video description for purchasing on Amazon or eBay.
2. Tools Needed: Pentalobe P5 screwdriver, T3 and T4 Torx screwdrivers, Pentalobe 0.8 or P2 for Wi-Fi antenna.

Steps to Replace Screen

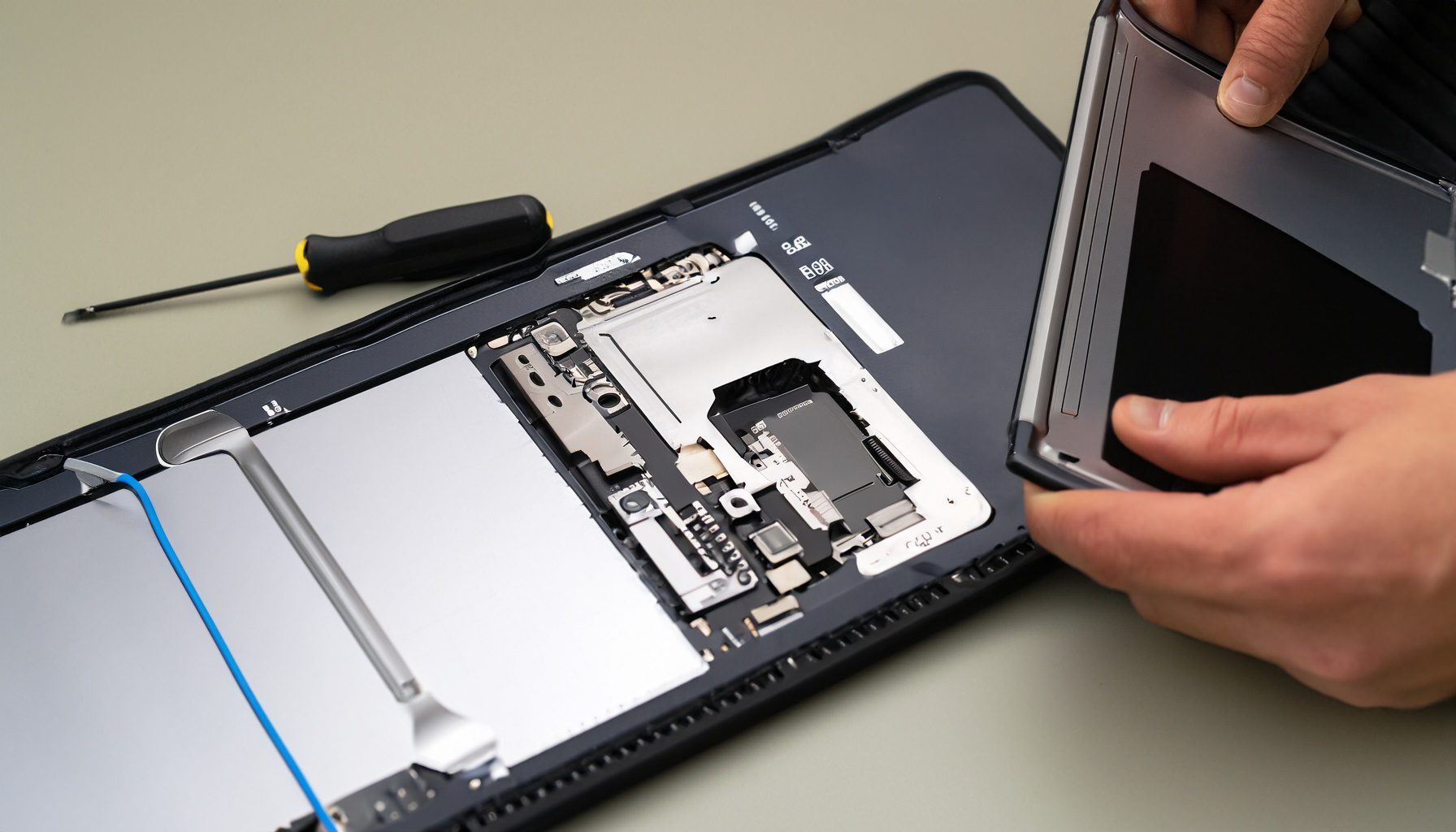

1. Remove Back Cover:
   • Unscrew top two screws (longest) and bottom four screws (middle size) with Pentalobe P5.
   • Gently pry open the back cover.
2. Disconnect Battery:
   • Use a plastic prying tool to flip open the connector cover and slide the cable out.
3. Remove Wi-Fi Antenna:
   • Unscrew with Pentalobe P2 or 0.8 screwdriver.
   • Disconnect two Wi-Fi cables.
   • Slide out the antenna.
4. Remove LCD Board:
   • Use T4 screwdriver to remove screws holding the LCD board.
   • Disconnect the board carefully.
5. Remove Hinges:
   • Use T8 Torx screwdriver to unscrew six screws from hinges.
   • Open laptop screen slightly and slide out the old screen.
6. Install New Screen:
   • Position new screen at a 90-degree angle.
   • Slide in the hinges and secure with T8 screws.
   • Ensure all cables are correctly placed on top of the laptop.

Reassembling

1. Reattach Wi-Fi Antenna:
   • Slide cables through the designated hole.
   • Reattach antenna and secure with screws.
2. Reconnect LCD Board:
   • Align and press down gently to connect.
   • Replace the screws.
3. Reattach Hinge Covers:
   • Use T3 screws to secure hinge covers.
4. Reconnect Battery:
   • Slide the battery connector back in place and flip down the connector cover.
   • Screw in the battery screw.
5. Reattach Back Cover:
   • Align back cover and slide towards the laptop.
   • Press down to click into place.
   • Screw back with the P5 screwdriver.

Final Steps

• Test the Laptop: Power on to ensure the screen is working correctly.
• Tips: Take photos during disassembly for reference, be gentle with connectors, and ensure screws are not mixed up.

Conclusion

• Engagement: Encourage viewers to like, comment, and ask questions.
• Reminder: Links for screen and tools are available in the video description.
