How to Properly Terminate a Network Cable with a Pass-Through RJ45

Hey tech enthusiasts and DIY network wizards! If you’ve ever wondered how to give your network cables a professional and tidy finish with pass-through RJ45 connectors, I’ve got just the tutorial for you. Today, we’re getting our hands on some networking essentials, so let’s jump right in!

What You’ll Need:

• Pass-through RJ45 connectors
• A pass-through clipper (or crimping tool)
• A sharp cutter or scissors
• RJ45 faceplate
• A couple of screws and a screwdriver

Step 1: Prep the Cable

First things first, strip off the outer case of the network cable to reveal the insulated wire pairs inside. You’ll notice some fabric there – that needs to go. Just cut it off.

Step 2: Arrange the Wires

Network cables are color-coded, and it’s crucial to get the order right for the connection to work. We’re going to use the T568B wiring standard, which is the most common:

1. Orange White
2. Orange
3. Green White
4. Blue
5. Blue White
6. Green
7. Brown White
8. Brown

Untwist each pair and straighten them out as much as possible.

Step 3: Trim and Insert

Once you have the wires in the correct order, give them a final straighten with your fingers, ensuring they’re as flat and in line as possible. Check the sequence again before you proceed – it’s easy to mix them up.

Now, trim the ends to make them even. Slide the wires into the pass-through RJ45 connector with the clip facing down. Push them through until they reach the end of the connector.

Step 4: Crimp It

Once you’re confident the wires are in the correct order and fully inserted, it’s time to crimp. Place the connector into the pass-through clipper and press down firmly. This will secure the wires in place and trim the excess wire ends.

Step 5: Attach the Faceplate

Next, we’ll install the faceplate onto the wall. If you’re dealing with multiple cables, like I am – two white for data and one black for the phone – it’s vital to keep them organized.

Step 6: Secure the Cables

Before plugging the cables into the faceplate, tie a knot in the bunch for strain relief. This prevents the connectors from getting damaged if the cables are pulled.

Step 7: Finish Up

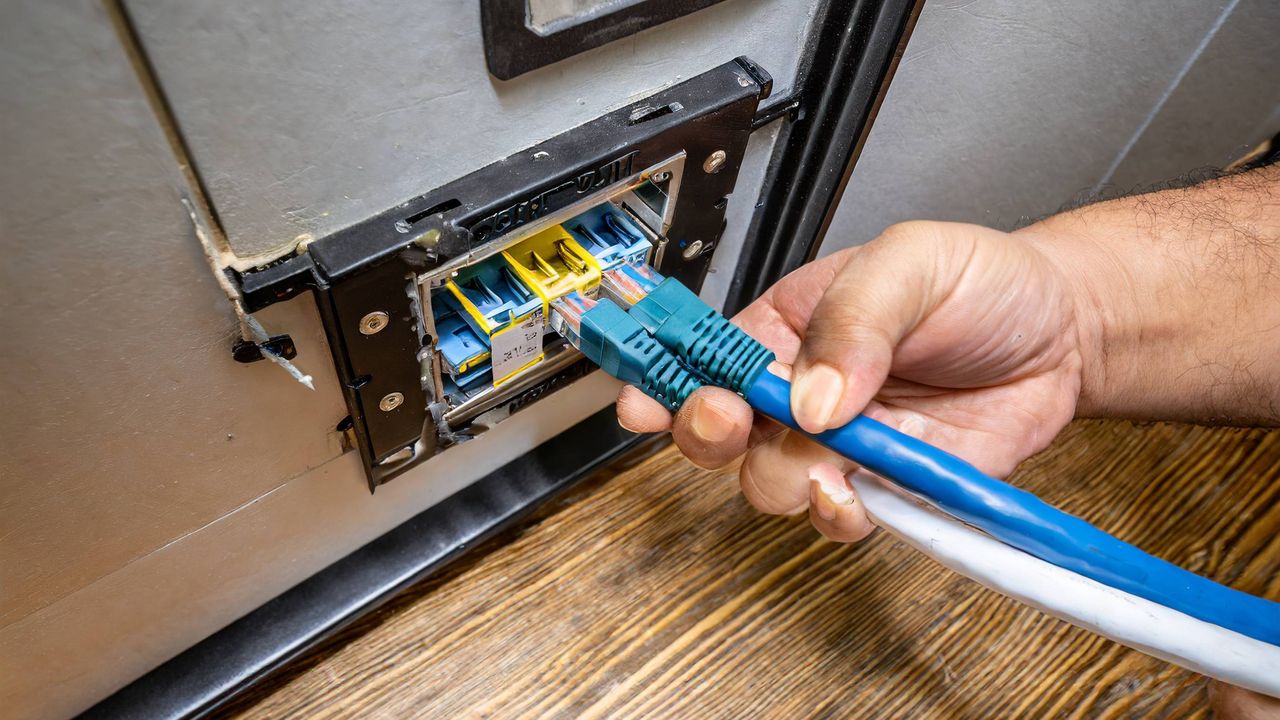

Finally, plug the cables into the faceplate. It’s just like plugging a cable into any Ethernet jack. Once everything is plugged in, fasten the faceplate to the wall with the screws.

And there you have it! You’ve successfully terminated a network cable with a pass-through RJ45 connector and attached a faceplate for a neat finish.

Why Bother with a Pass-Through RJ45?

Pass-through connectors are a dream come true for precision and ease. They allow the wires to pass through the connector so you can easily verify the correct order before crimping. It’s a small detail that makes a big difference, especially when you’re working with multiple cables.

Final Thoughts

Terminating your network cables might seem like a small task, but it’s these details that lead to a reliable and efficient network setup. So next time you’re running new lines or updating your network, give this method a try – your future self will thank you for a job well done.

Happy networking!
