Title: Comprehensive Teardown and Upgrade Guide for Lenovo Legion 5 Laptop

Introduction: Hey there! Simon here. In this detailed guide, I’ll take you through the step-by-step process of tearing down a Lenovo Legion 5 Laptop (Model: 15IMH05H). We’ll look at disassembling key components like the motherboard, battery, and CPU fan, and also discuss upgrading the RAM, hard drive, and thermal paste application. Let’s dive in!

Teardown Process:

1. Getting Started: This Lenovo Legion 5 model, manufactured in November 2020, is a robust machine. We begin our teardown process with a Phillips screwdriver to remove the back cover screws. There are four screws at the top, one in the middle, and four smaller ones at the bottom.
2. Opening the Back Cover: Using a metal or plastic prying tool, gently pry open the back cover. Be cautious not to insert the tool too deeply to avoid damaging internal components.

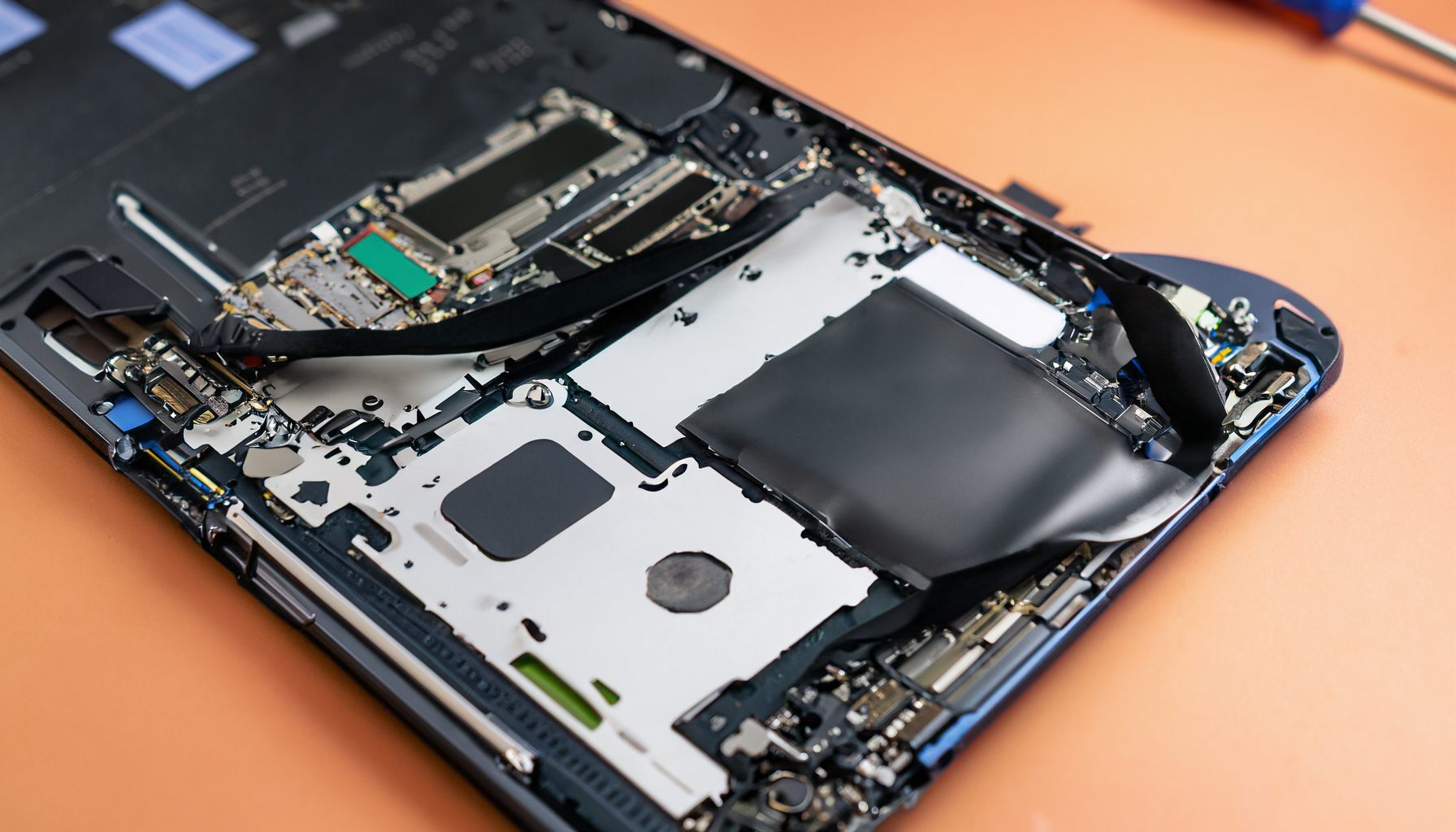

3. Internal Overview: Upon removing the back cover, you’ll see the internals of the laptop. The left and right sides house the CPU fans, with the CPU and graphics card located centrally. The fans work to expel heat from the laptop. You’ll also notice the battery and RAM slots.
4. Battery Inspection and Replacement: If your battery is failing to hold a charge or appears swollen, it’s time for a replacement. Swollen batteries can also affect the touchpad functionality. Disconnect the battery by sliding the connector towards yourself and then remove it. Check for the replacement part number (e.g., L19M4PC0) and order accordingly.
5. RAM and Storage Upgrades: The laptop comes with DDR4 RAM. You can easily upgrade by removing the metal bracket over the RAM slots and adding additional RAM to the available slot. For storage, the primary NVMe M.2 drive can be upgraded. If you’re running low on storage, consider cloning your existing drive to a larger capacity M.2 NVMe drive using a USB adapter.
6. Secondary Storage Options: If you need additional storage, you can either add a 2.5-inch hard drive or another M.2 NVMe drive in the secondary slot. This provides flexibility for those needing extra space for their data.
7. CPU Fan and Heat Sink Removal: For the CPU fan and heat sink, remove the screws and connectors. This is a good opportunity to clean out any dust accumulation and apply new thermal paste to the CPU and graphics card.
8. Keyboard and Other Components: The keyboard of the Lenovo Legion 5 is integrated into the chassis, meaning you’ll need to replace the entire assembly for any keyboard issues. Other components like the Wi-Fi card, speakers, and CMOS battery are also accessible for maintenance or replacement.

Conclusion: This teardown of the Lenovo Legion 5 offers insights into both the internal layout and potential upgrades. Whether you’re looking to boost performance with additional RAM or need a battery replacement, this guide should help you navigate the process with confidence.
