MacBook Air Revival: The Motherboard Replacement Guide

Hey there, tech aficionados!

Welcome back to my channel, and I hope you’re doing fabulously well today. Get ready to dive into the world of DIY computer repair because I’m about to walk you through a step-by-step tutorial on replacing a motherboard in a MacBook Air, model A1466, from early 2015.

Have you ever experienced the heart-dropping moment of spilling water on your beloved laptop? Well, one of my viewers did, and their MacBook Air sadly wouldn’t power on afterward. The diagnosis? Motherboard water damage.

What You’ll Need:

• A replacement motherboard (make sure it’s for the correct model!)
• Pentalobe screwdriver
• Torx screwdriver
• Optional: plastic pliers

Let’s roll up our sleeves and get to work.

Removing the Back Plate: After unscrewing the back plate with the pentalobe screwdriver, we’re in. First off, there’s a red liquid damage indicator – it’s like a red flag waving at us, quite literally, signaling motherboard exposure to liquid.

Removing the Battery: Next, out comes the battery – just five screws using the Torx screwdriver. We’ll keep the same battery but removing it now gives us room to maneuver.

Solid State Drive (SSD) Removal: With just one screw holding it, the SSD is next to go. Remember, it’s delicate, so handle with care.

Disconnecting the Cables: This is where those optional plastic pliers could come in handy. Gently disconnect the cables for the fan, touchpad, and keyboard lighting.

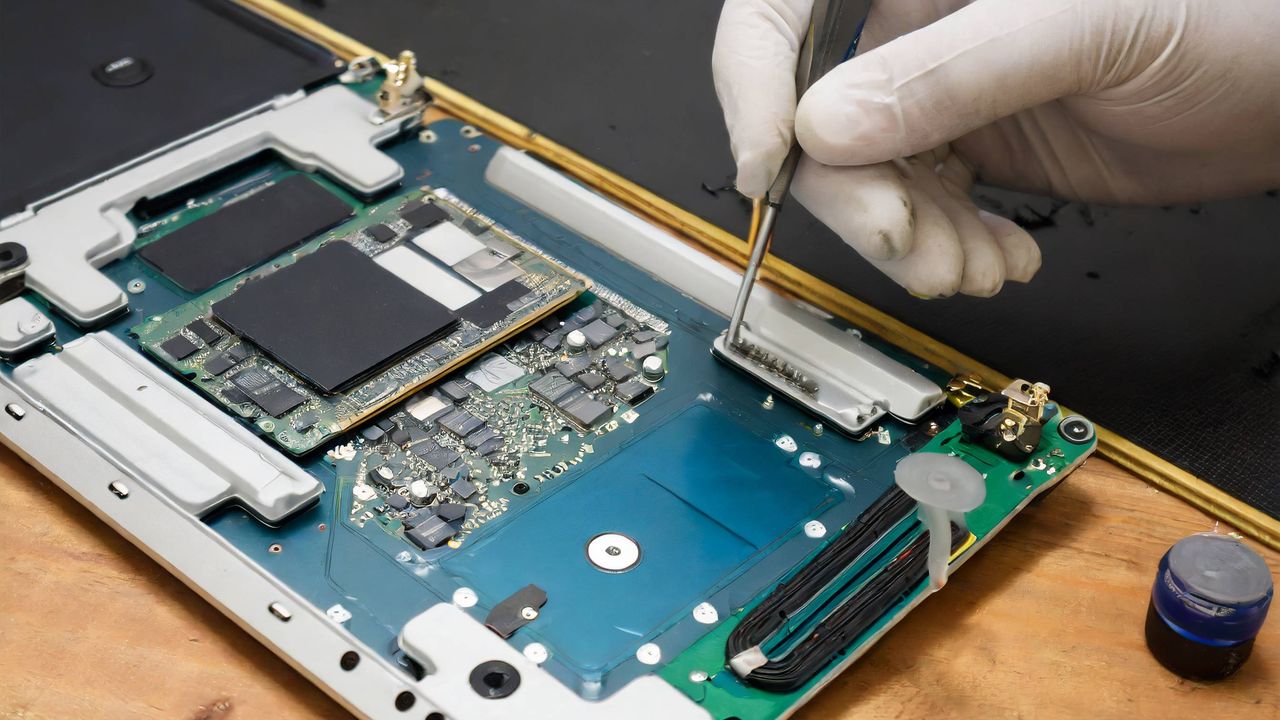

Removing the Motherboard: We’re now onto the meat of the operation – unscrewing and removing the motherboard. This involves carefully detaching the fan, Wi-Fi cables, and other connections. It’s a game of patience and precision.

Installing the Replacement Motherboard: With a tested and working used motherboard ready, we’ll reverse the process. But, heads up: make sure all the cables are poking out so they don’t get trapped underneath during installation.

Reconnecting Everything: Now, we’re hooking up all the cables back into their rightful ports. The order isn’t set in stone, but I usually go for the touchpad cable first, followed by the keyboard backlighting, speaker, and finally the LCD screen.

The Moment of Truth: Before I reassemble everything completely, I’ll attach just enough screws to secure the motherboard and connect the power to see if it lights up. And… we have liftoff! It works!

Final Steps: With the computer powering on successfully, it’s time to put all the screws back, reattach the back plate, and give it the old college try.

And there you have it, folks! A step-by-step guide on how to replace a motherboard on a MacBook Air. This repair could save you hundreds of dollars, and it’s an eco-friendly move, too, preventing a perfectly good laptop from heading to the landfill.
